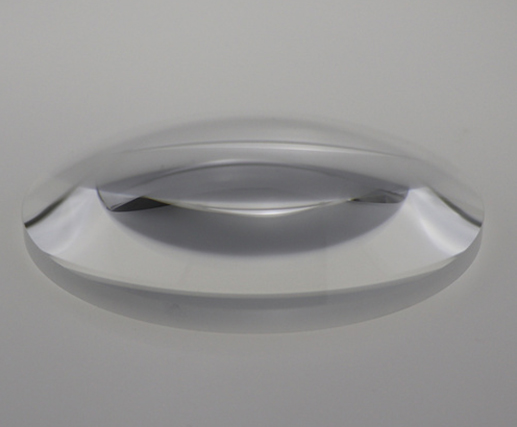

38mm Dia. x 50.0mm FL, Uncoated, Plano-Convex Lens, N-BK7 Lens
产品详情
| Part Number | LPX5038 | ||
| Diameter (mm): | 38 | Diameter Tolerance (mm): | +0/-0.10 |
| Effective Focal Length EFL (mm): | 50 | Substrate: | N-BK7 or Equivalent |
| Surface Quality: | 60-40 | Centering (arcmin): | <1 |
| Power (P-V) @ 632.8nm: | 1.5λ | Irregularity (P-V) @ 632.8nm: | λ/2 |
| Center Thickness CT (mm): | 10.3 | Center Thickness Tolerance (mm): | 0.1 |
| Edge Thickness ET (mm): | Clear Aperture CA (mm): | 34 | |
| Type: | Plano Convex Lens | Bevel: | Protective bevel as needed |
| Coating: | Uncoated | RoHS: | Compliant |
